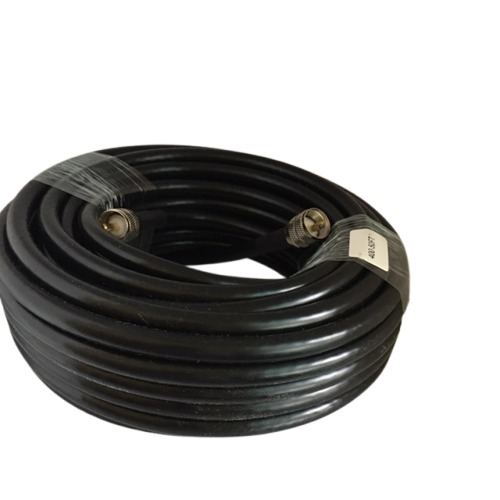

50 FT length LMR-400 high power coax patch cable with HAND SOLDERED silver body PL-259 (UHF male) connectors on each end. 50ohm Shielded high quality coax cable with male to male PL-259 connectors! Absolutely great 100% copper LMR-400 low loss coax cable for all your DX needs!!
Free USPS Priority Mail 2-3 SHIPPING to all 50 states!!!!
SPECIFICATIONS:
- Black Non-Contaminating Ultra-Violet Resistant PVC Jacket
- Premium 95% Bare Copper Braid
- Solid Polyethylene Dielectric Insulator
- Stranded Bare Copper Center Conductor
- HAND SOLDERED silver body PL-259
- Premium Grade Silver Body PL-259 Connectors on each end
- 50 Ohm Nominal Impedance
Note: LMR® is a registered trademark of Times Microwave
Construction Materials
Jacket Color Black
Jacket Material Non-halogenated PE
Braid Material Tinned copper
Shield Tape Material Aluminum
Dielectric Material Foam Polyethylene
Inner Conductor Material Copper-clad aluminum wire
Dimensions
Cable Weight 0.10 kg/m
Diameter Over Dielectric 7.240 mm | 0.285 in
Diameter Over Jacket 10.290 mm | 0.405 in
Diameter Over Tape 7.391 mm | 0.291 in
nner Conductor OD 2.7400 mm | 0.1079 in
Nominal Size 0.400 in
Outer Conductor OD 8.080 mm | 0.318 in
Electrical Specifications
Cable Impedance 50 ohm
Capacitance 78.0 pF/m | 24.0 pF/ft
dc Resistance, Inner Conductor 4.690 ohms/km | 1.430 ohms/kft
dc Resistance, Outer Conductor 5.610 ohms/km | 1.710 ohms/kft
dc Test Voltage 2500 V
Jacket Spark Test Voltage (rms) 4000 V
Maximum Frequency 16.20 GHz
Operating Frequency Band 30 6000 MHz
Peak Power 16.0 kW
Shielding Effectiveness >90 dB
Velocity 85%
Environmental Specifications
nstallation Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Operating Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature -70 °C to +85 °C (-94 °F to +185 °F)
General Specifications
Cable Type RW-400
Braid Coverage 90% braid
Brand RW
Mechanical Specifications
Bending Moment 0.7 N-m | 0.5 ft lb
Flat Plate Crush Strength 0.7 kg/mm | 40.0 lb/in
Minimum Bend Radius, Single Bend 25.40 mm | 1.00 in
Tensile Strength: 73 kg | 160 lb
Electrical Performance
Frequency Attenuation (dB/100 m) Attenuation (dB/100 ft)
30 MHz 2.49 0.76
50 MHz 3.18 0.97
150 MHz 4.92 1.50
220 MHz 6.23 1.90
450 MHz 8.86 2.70
900 MHz 12.80 3.90
1500 MHz 16.70 5.10
1800 MHz 18.40 5.60
2000 MHz 19.40 5.90
2400 MHz 21.65 6.60
2500 MHz 22.00 6.70
3000 MHz 24.60 7.50
4000 MHz 28.87 8.80
4500 MHz 30.84 9.40
5000 MHz 32.81 10.00
5200 MHz 33.46 10.20
5500 MHz 34.78 10.60
5800 MHz 35.76 10.90
6000 MHz 36.42 11.10
