BUY THE RADIO GET THE ANTENNA AND MAG MOUNT FREE!!!!

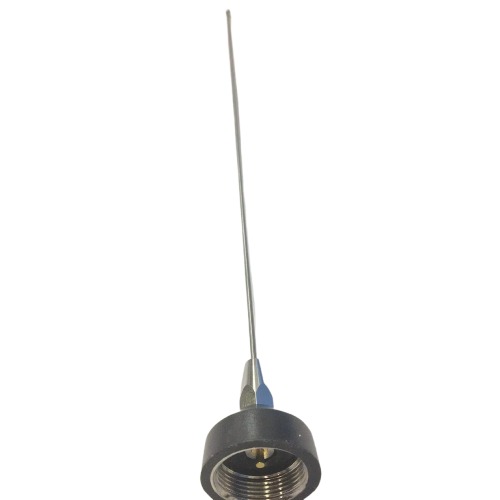

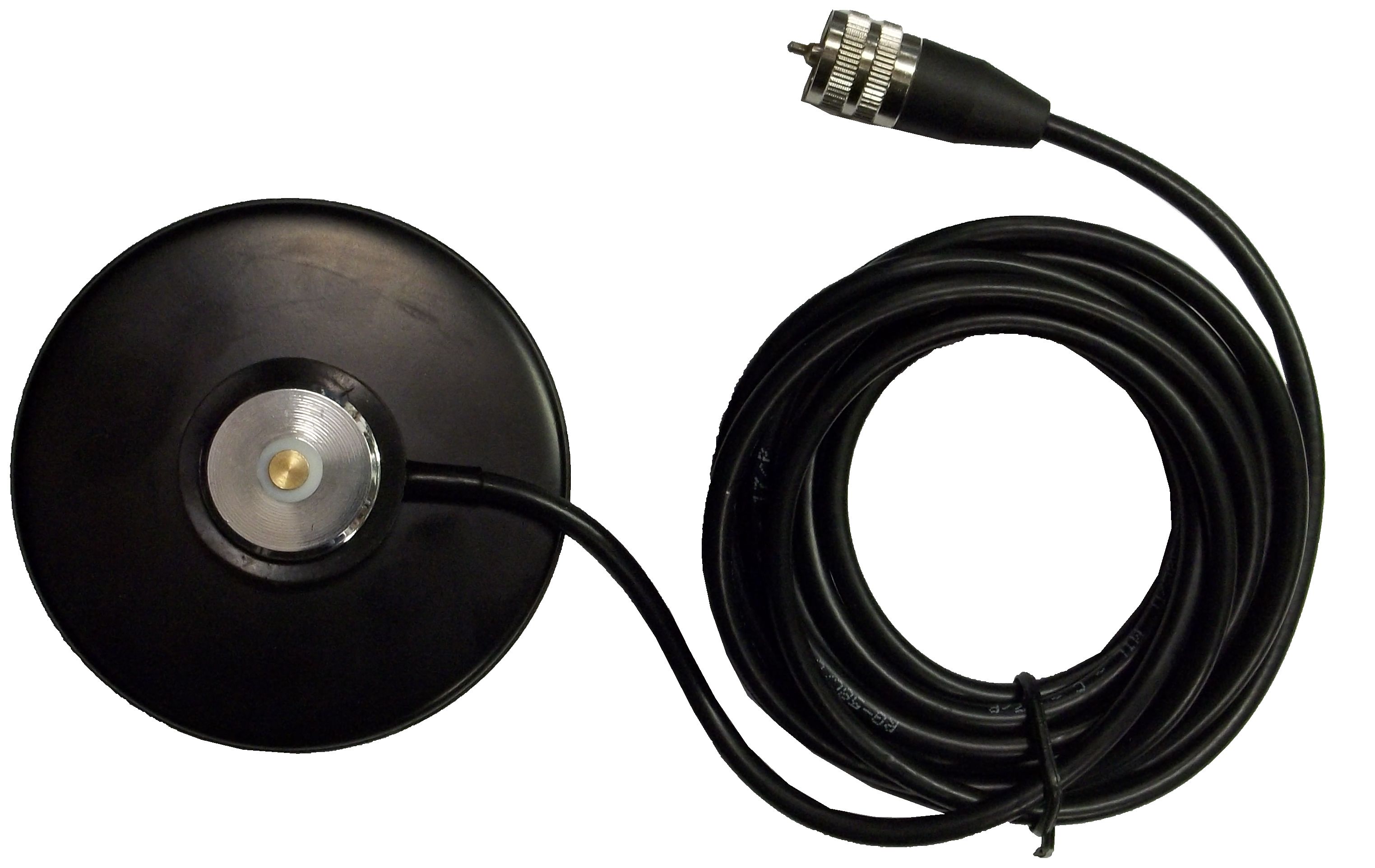

Kit Includes Radio, 1/4 Wave Mobile Antenna and a 3.5 Inch Magnetic Mount.

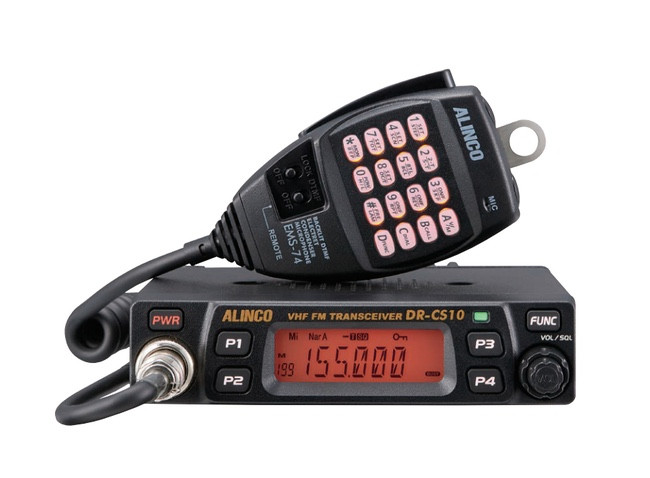

This is a ultra compact radio that is loaded with high technology features. It is easy to use. Has a Large back-lit display and microphone, excellent transmit/receive audio, 200 channel memories, various scanning and more at no extra cost.
Features:
- Output power selectable 60W /25W / 10W
- PC Programmable 200 Channels
- Alphanumeric name tags
- Wide variety of selective calling features built-in; 2-Tone, 5-Tone, 51 CTCSS, 1024 DCS, 4 Tone-Burst tones and DTMF / ANI decode
- Radio Stun / kill / revive functions to protect your communication security.
- Large, bit LCD and easy to operate backlit microphone keys

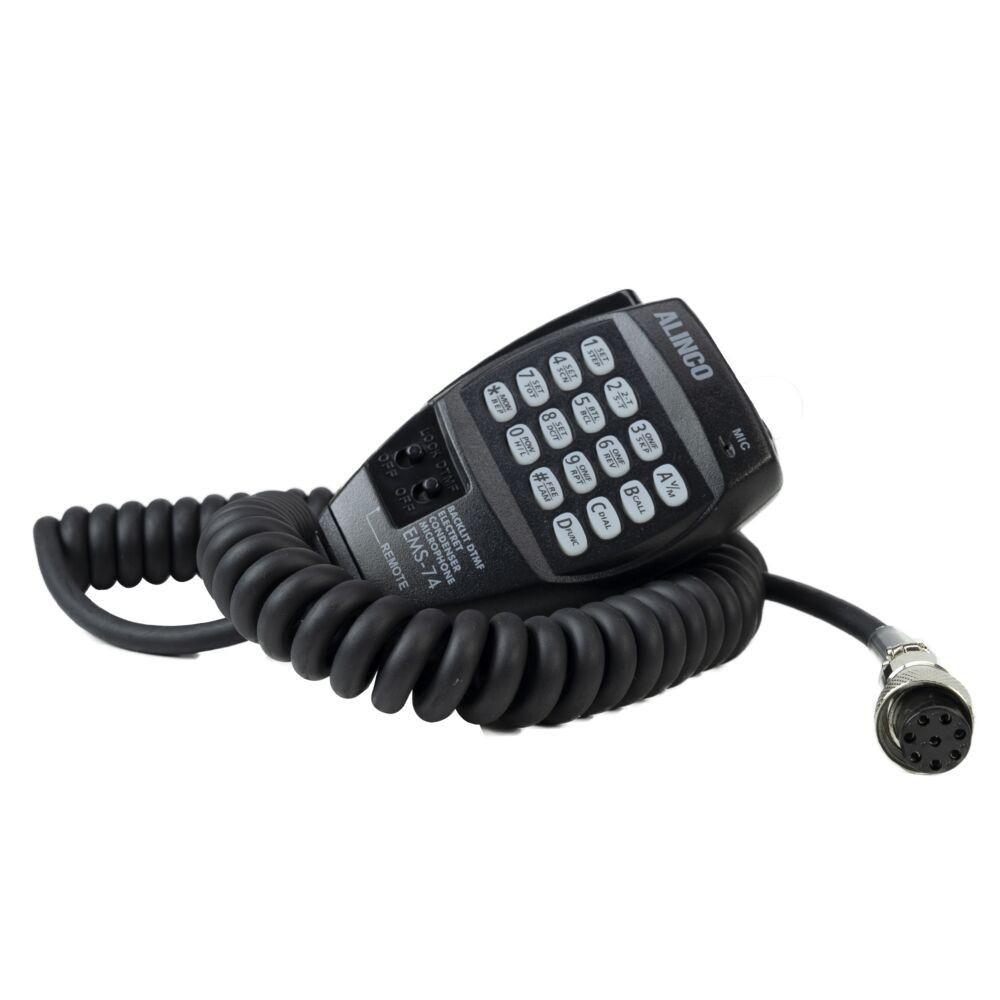

- Multi-function microphone enables direct frequency entry & remote control
- Various scan modes, Key Lock, Wide / Narrow operations and more.
Specifications:
General
- Frequency range: 136.000 - 173.9975 MHz
- Number of Channels: 200 Channels
- Channel Spacing: 25 KHz (Wide Mode) 20 KHz (Middle Mode) 12.5 KHz (Narrow Mode)
- Channel Step: 2.5 KHz, 5 KHz, 6.25 KHz, 8.33 KHz, 10 KHz, 12.5 KHz, 15 KHz, 20 KHz, 25 KHz, 30 KHz, 50 KHz
- Operating Voltage: 13.8 V DC +-15%
- Squelch: Carrier / CTCSS / DCS / 5Tone / 2Tone / DTMF
- Frequency Stability: +-2.5ppm
- Operating Temperature: -20 degree C - + 60 degree C
- Dimensions: 5.71" (W) x 1.38" (H) x 7.09" (D) / 145 (W) x 35 (H) x 180 (D) mm approx.
- Weight: 1.98 lbs
- /0.9 kg approx.
Receiver
- Sensitivity (12dB Sinad) Wide Mode: ≤0.25 uV Narrow Mode: ≤0.35 uV
- Adjacent Channel Selectivity: Wide Mode: ≥ 70 dB Narrow Mode: ≥60dB
- Intermodulation: Wide Mode: ≥65dB Narrow Mode: ≥70dB
- Audio Response: Wide Mode: +1-3dB(0.3-3KHz) Narrow Mode: +1-3dB(0.3-2.55KHz)
- Hum & Noise: Wide Mode: ≥45dB Narrow Mode: ≥40dB
- Audio Distortion: ≤5%
- Audio Power Output: >2W@10%
Transmitter
- Power Output: 60W / 25W / 10W
- Modulation: Wide Mode: 16KOF3E Narrow Mode: 11KOF3E
- Adjacent Channel Power: Wide Mode: ≥ 70 dB Narrow Mode: ≥60dB
- Hum & Noise: Wide Mode: ≥40dB Narrow Mode: ≥36dB
- Spurious Emission: Wide Mode: ≥60dB Narrow Mode: ≥60dB
- Audio Response: Wide Mode: +1-3dB(0.3-3KHz) Narrow Mode: +1-3dB(0.3-2.55KHz)
- Audio Distortion: ≤5%
- Current drain (max) 10A (TX) / 0.6A (TX)
30 Day Warranty
