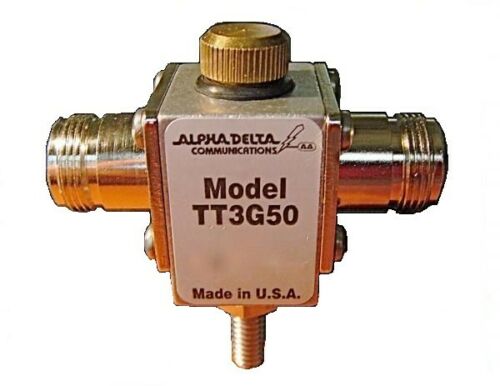

    Alpha Delta ATT3G50 - Transi-Trap Surge Protector, N Type, 200 watts

    Free shipping
    Alpha Delta ATT3G50 - Surge Protector, Coaxial, DC pass, N-type, Female, Stud Mount, 200 W Power Rating
    $59.95
    (No reviews yet) Write a Review
    SKU:
    AD-ATT3G50
    Width:
    10.00 (in)
    Height:
    12.00 (in)
    Depth:
    3.00 (in)
    Shipping:
    Free Shipping

    Out of stock

    Alpha Delta Model ATT3G50 - UHF Transi-Trap Coaxial Cable Surge protectors.

    Transi-Trap surge protectors are gas surge arresters designed to protect sensitive electronic equipment from damage due to excess voltage or currents generated by transient phenomena (lightning or static buildup)

    These Connector Coaxial Cable Surge Protectors have N Type (N Female) connectors and are rated for 200 watts at frequencies up to 500 MHz.

    They are not DC-blocked, so they will pass control voltages in applications requiring the coaxial cable to carry both RF and DC voltage. They may be easily mounted for the most effective grounding with a 1/4-20 bolt or stud (depending on model) in a single hole or as a bulkhead-mount through the grounding panel.

    Specifications:

    Frequency Range: 0 to 500 MHz
    Insertion Loss: <0.1 dB from 0 to 500 MHz
    VSWR: <1.10:1 from 0 to 500 MHz
    Impedance: 50 Ohms
    DC Blocking: None Will pass DC for power and control purposes. Max. DC or peak is 150 volts
    Connectors: N Type (N Female)
    Firing Point: 350 volts +/- 15% @ <100 v/s <1000 @ 5k v/us rise
    Breakdown Voltage: 20 to 30 volts
    Surge Current: 5000 A (8/20 us pulse)
    ARC-Plug life: >600 Times @ 500 A pulse (field replaceable)
    Size: 1 w x 1-1/4 h x .875 Inches
    Mounting and Grounding: Single hole 1/4 - 20 x 7/8 stud

    Note: These devices are not intended to protect equipment, personnel or structures from the effects of a direct lightning strike as these are unpredictable in strength and vary widely in severity. Direct strikes can cause building damage, including damage to AC connected appliances and equipment induced through AC power lines.

    Product(s) may be returned for warranty service within 6 months of the original ship date (as shown on the original invoice copy) to the customer if purchased direct from Alpha Delta, or the ship date from Alpha Delta to the authorized dealer/reseller if purchased through that source, only if the product has not been modified, opened or subjected to abnormal wear or abuse, and it has been determined that the problem is the result of a manufacturing error or defect.
