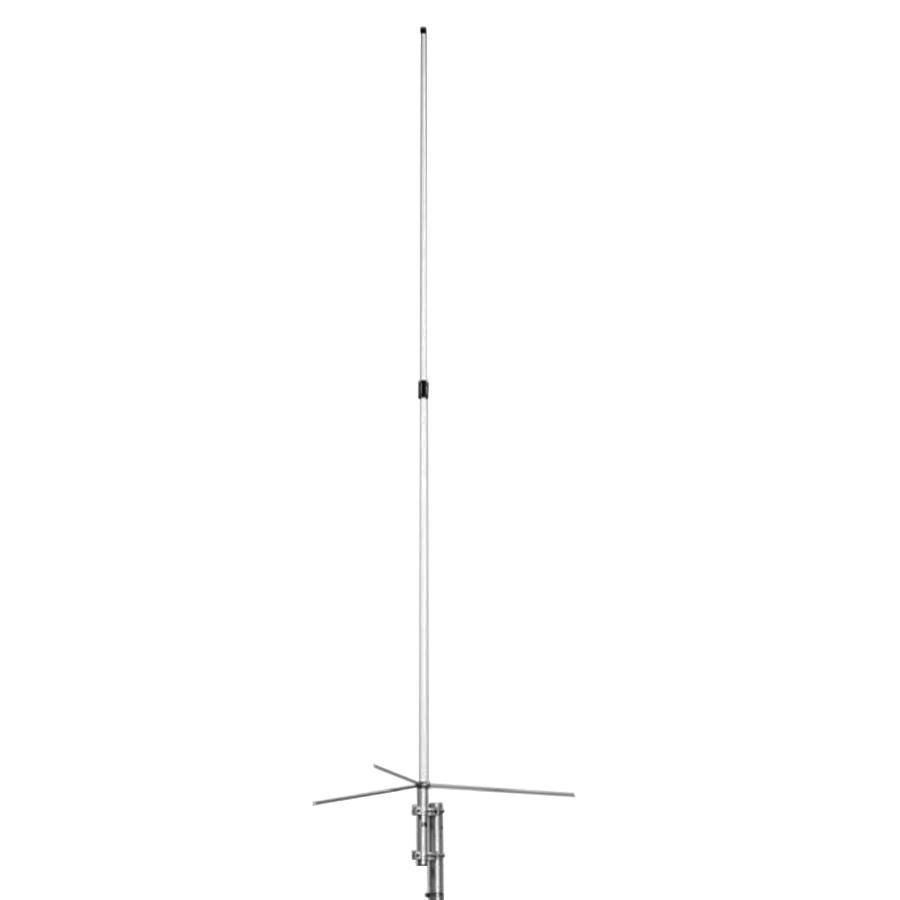

The Comet GP-6NC GMRS/FRS-Commercial Dual-Band VHF/UHF Base Vertical Antennas provide high-gain performance on the 153-157 MHz and 460-470 MHz bands. These superior-quality base station antennas feature a two-piece, heavy duty, UV-stabilized fiberglass radome for many years of reliable service.
Note: Does not Operate on the HAM BANDS
Features:
- Low-Loss and High Gain, based on SLC, Super-Linear-Converter
- Wide-Banded, and requires no frequency adjustment
- Heavy-Duty fiberglass
Specifications:
- Frequency Range: 153-157/460-470 MHz
- Gain: (VHF) 155 MHz - 6.5 dBi, (UHF) 465 MHz - 9.0 dBi
- Impedance: 50 Ohms
- VSWR: 1.5 or Less
- Max Input power: 200 watts (SSB)
- Length: 10 ft 2 inches
- Antenna Weight: 3 lb 8 oz
- Connector: N-female
- Construction: Two piece white fiberglass
- Max Wind Survival: 110 MPH
- Wind Load: 66 sq Inches (.46 Sq. ft)
- Mast Required: 1.25-2.5 Inches
- Construction: Two Piece White Fiberglass radome, copper radiating element, Mounting hardware Included
| Band Coverage | Frequency Coverage Range | Vertical Antenna Gain | Bandwidth at 2:1 SWR |
|---|---|---|---|
| GMRS FRS 462-467 MHz | 460-470 MHz | 9.0 dBi | Over 10.0 MHz |
| Commercial | 153-157 MHz | 6.5 dBi | Over 4.0 MHz |
1 Year Manufacturer Warranty
