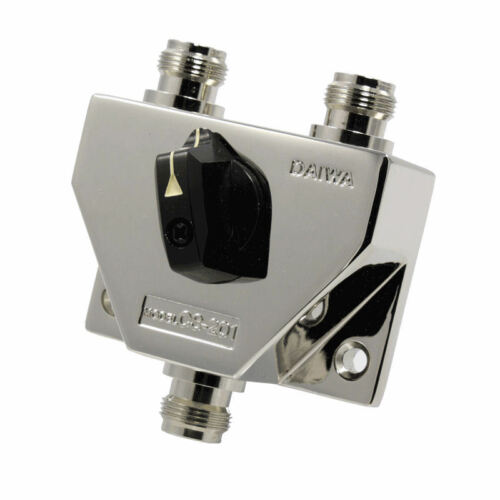

Daiwa CS-201GII - Antenna Coax Switch, 2-port, N Female

Free shipping
$59.95
(No reviews yet) Write a Review
SKU:
DWA-CS-201GII
Width:
10.00 (in)
Height:
12.00 (in)
Depth:
3.00 (in)
Shipping:
Free Shipping

These can be used to switch between one antenna and two radios or two antennas and one radio. These 2-position coaxial switches can handle the power and offer auto grounding of the unused terminal for protection and excellent port isolation.

Specifications:

Frequency range: (up to) 2 GHz
Power ratings: 1.5 kW CW (up to 30 MHz), 250 W CW (up to 1 GHz), and 150 W CW (up to 2 GHz)
VSWR: below 1:1.3 at 1.3 GHz
Insertion loss: less than 1.2 dB at 1.2 GHz
Isolation: 50 dB 1 GHz
Connector: N-type

NatCommGroup products (Comet, Daiwa, Maldol, Create, Lido, and NCG brands) are under factory warranty for one year from date of purchase
