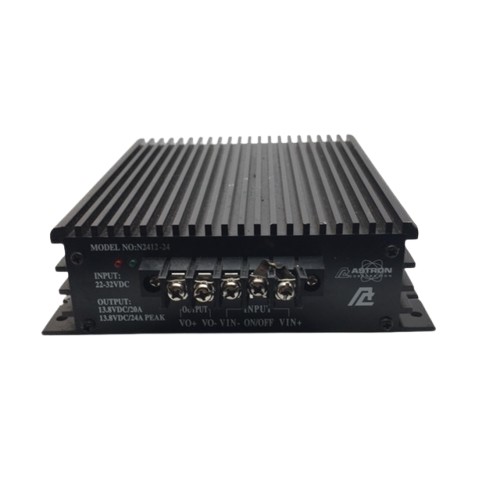

Used Astron N2412-24 - DC-DC Power Converter, 22-32 Vdc To 13.8 Vdc Output @ 20 Amps. Free Shipping.
This is used, do not have original box, manual
This DC-DC Converter are ideally suited for the use with mobile 12/13.8 VDC equipment.
Features:
- Input Voltage: 22-32 VDC
- Output Voltage: 13.8 VDC
- Line/Load Regulation: .04 VDC
- Ripple: 20mVrms
- Continuous Current: 20 Amps
- Peak Current: 24 Amps
- Overvoltage Protection: 16 VDC
- Efficiency: 88%
- Dimensions: 1.8" x 6.2 x 6.8"
- Weight: 2.00 lbs
Standard Features:
- Built-in Protections: Overvoltage Protection, overcurrent and short-circuit protections
- LED visual indicators: DC- OK (Green) and Fault (Red)
- Screw-Type Terminal Connectors
No Warranty
