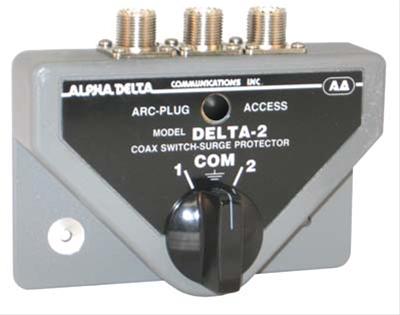

Alpha Delta Model Delta-2B 2 Position Coax Antenna Switch, UHF

Free shipping
$88.50
(No reviews yet) Write a Review
SKU:
AD-Delta-2B
Width:
10.00 (in)
Height:
12.00 (in)
Depth:
3.00 (in)
Shipping:
Free Shipping

They are built with powder coated cases and are designed with micro-strip constant impedance cavity construction for best performance. They have a precision internal rotating mechanism with positive detent action for exact switch position indication.

These can be used to run 1 radio and 2 different antennas or 1 antenna and 2 different radios
Specification:

Antenna Switch Positions: 2-port
Switch Impedance: 50 ohms
Connector: UHF Female (SO-239)
High Strength Solder Connections
Built In ARC-Plug (tm) Surge Protector
designed for low loss performance
Size : 5.250 (W) x 3.500 (H) x 1.250 in.(D) excluding connectors and knob
Switch Insertion Loss: Less than 0.10 dB
All Ports Grounded Position: Yes
Power Rating (0 to 30 MHz): 1,500 Watts PEP/1,500 CW

Note: When placed in the "COM" position, all switch positions are grounded. When a port is selected, that port is un-grounded while all other ports remain grounded.

Product(s) may be returned for warranty service within 6 months of the original ship date (as shown on the original invoice copy) to the customer if purchased direct from Alpha Delta, or the ship date from Alpha Delta to the authorized dealer/reseller if purchased through that source, only if the product has not been modified, opened or subjected to abnormal wear or abuse, and it has been determined that the problem is the result of a manufacturing error or defect.
