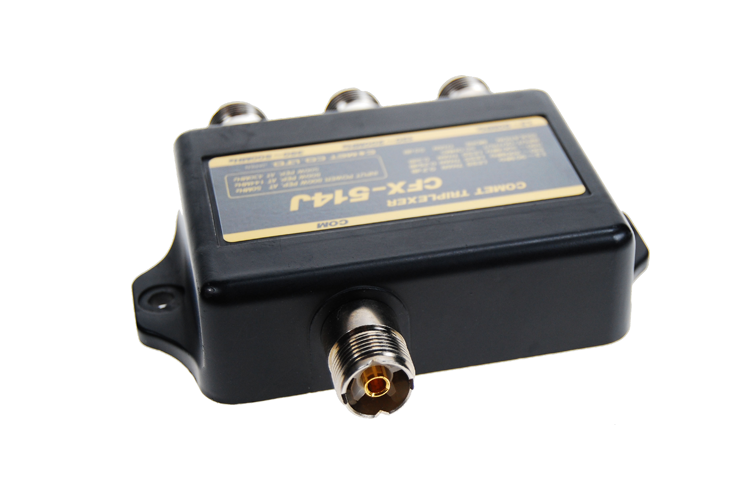

Comet calls these "triplexers", but they are also referred to as combiners or splitters. They are basically band-pass filters, simultaneously passing RF in both directions through the common connector while the band-pass filters provide a high degree of isolation between ports.
Band Pass
- 1.3-90 MHz Ins. Loss: 0.15 dB Max Power: 800 watts PEP
- 130-200 MHz Ins. Loss: 0.2 dB Max Power: 800 watts PEP
- 380-500 MHz Ins. Loss: 0.25 dB Max Power: 500 watts PEP
Isolation: 55 dB minimum
Connectors:
- Output: SO-239
- Low Pass: SO-239 w/o coax lead
- Mid Pass: SO-239 w/o coax lead
- High Pass: SO-239 w/o coax lead
NatCommGroup products (Comet, Daiwa, Maldol, Create, Lido, and NCG brands) are under factory warranty for one year from date of purchase
