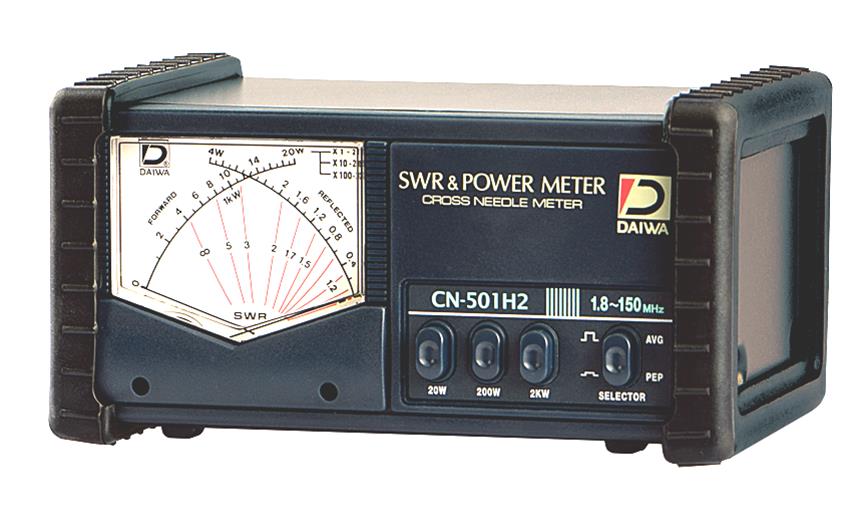

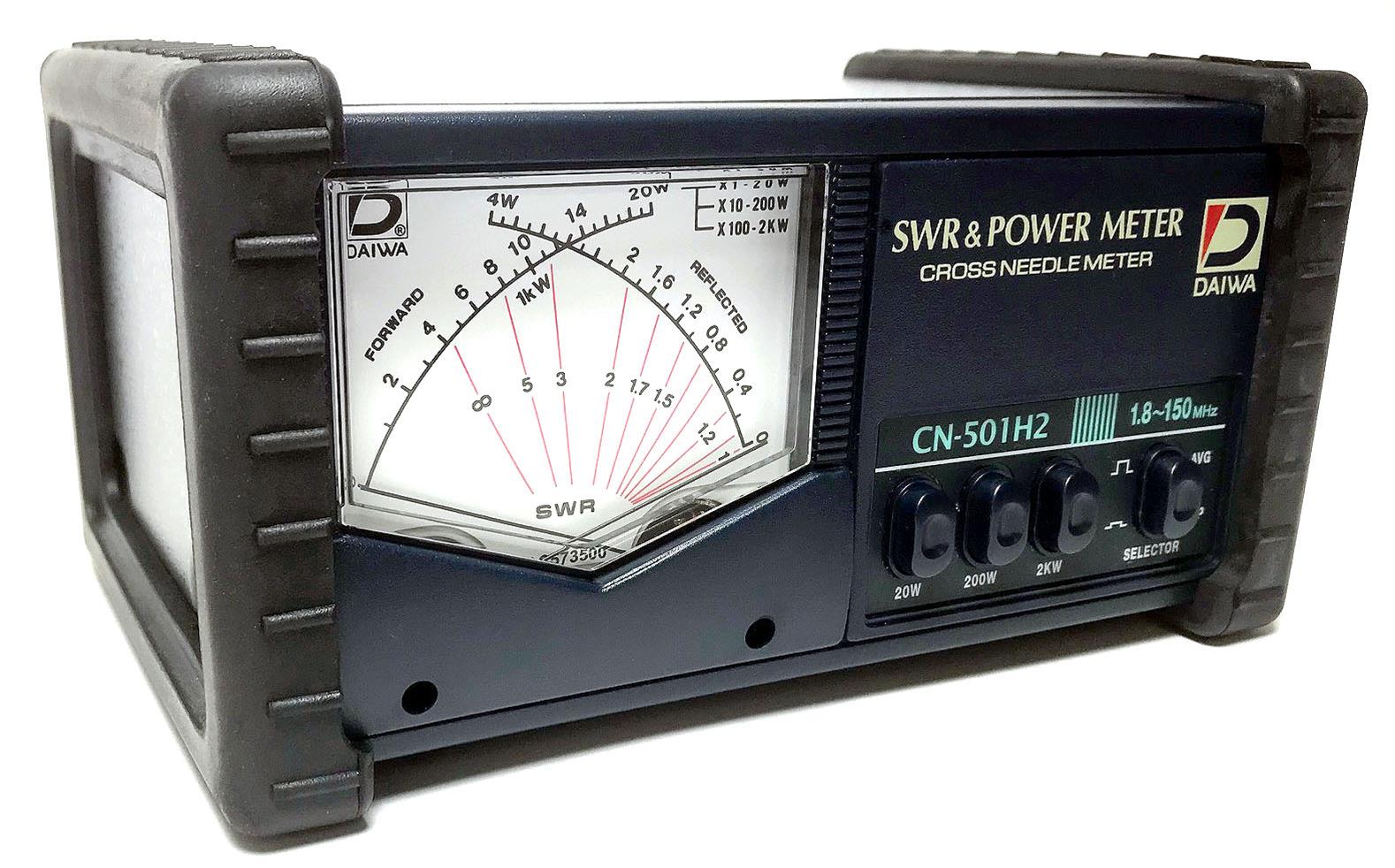

The cross-needle movement allows the simultaneous monitoring of forward power, reflected power, and SWR, all without the need of an extra calibration procedure.

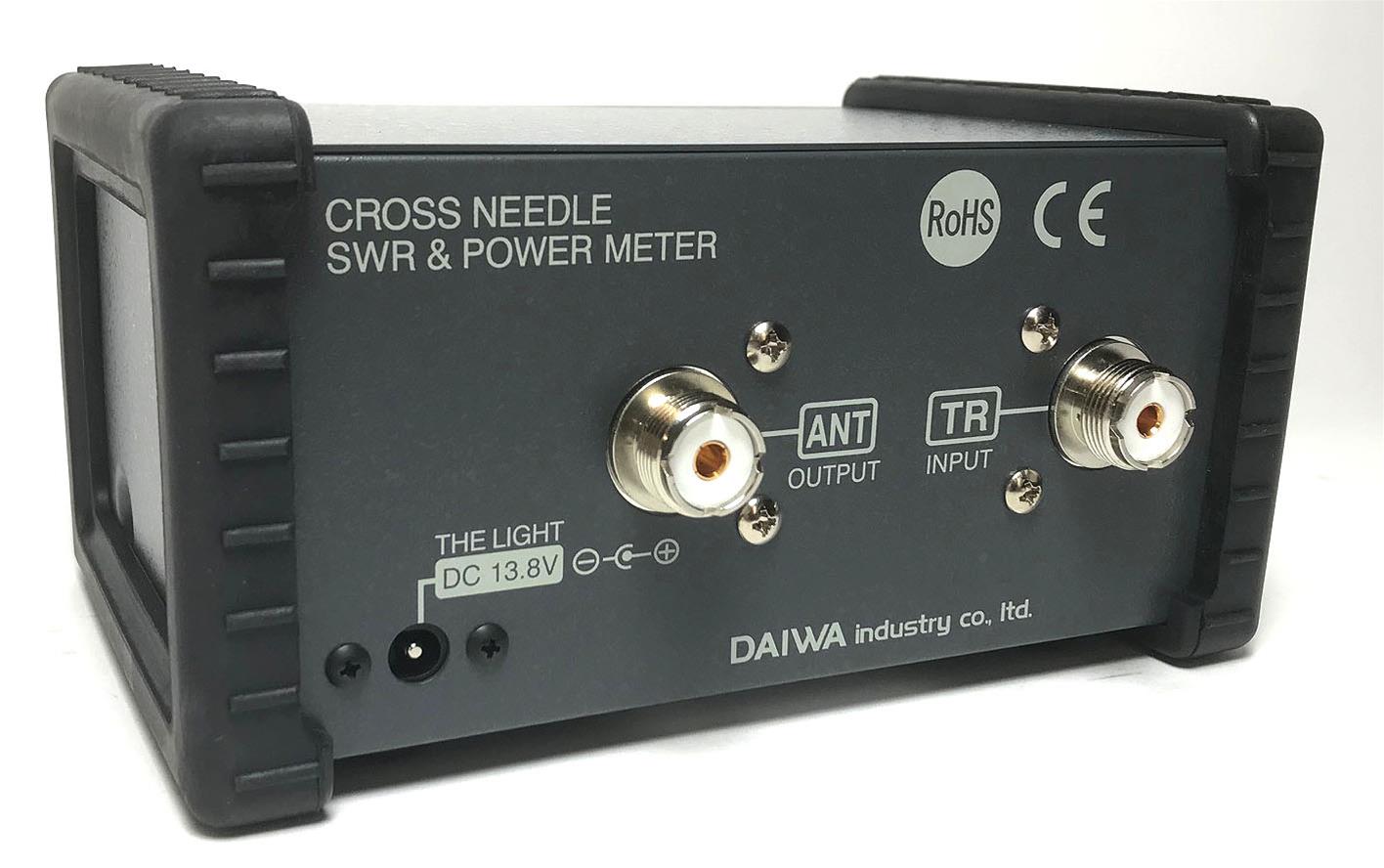

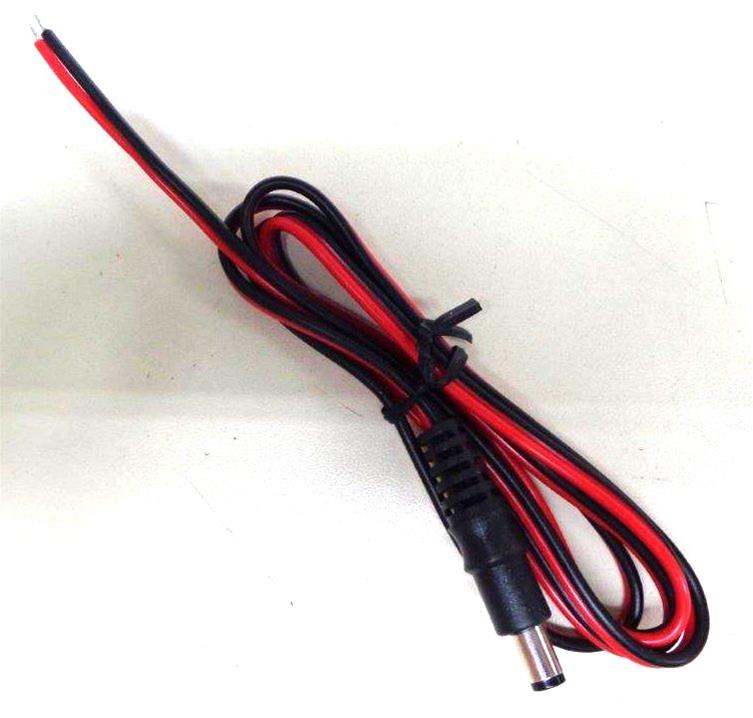

The meter is switchable for 20, 200 or 2000 watt full scale readings, and has a built-in lamp which can be powered from an external 13.8 VDC source. Supplied with a DC power cord, which is only required for powering the built-in lamp.
Specifications:
Frequency range: 1.8 - 150 MHz
Power range: (forward) 20/200/2000 watts
Power rating:
- 2000 watts (1.8 - 60 MHz)
- 1000 watts (144 MHz)
Accuracy: +-10% full scale
SWR detection sensitivity: 4 watts, minimum
Impedance: 50 ohms
Connectors:
- input: SO-239
- output: SO-239
Size : 5"H x 3"W x 4"D
NatCommGroup products (Comet, Daiwa, Maldol, Create, Lido, and NCG brands) are under factory warranty for one year from date of purchase. Any item found to be defective by NatCommGroup will be repaired or replaced at our discretion.
Antennas that have been broken due to use and normal wear and tear, including impacts with garage doors, tree limbs, road debris, vandalism, etcetera, are not considered defective
