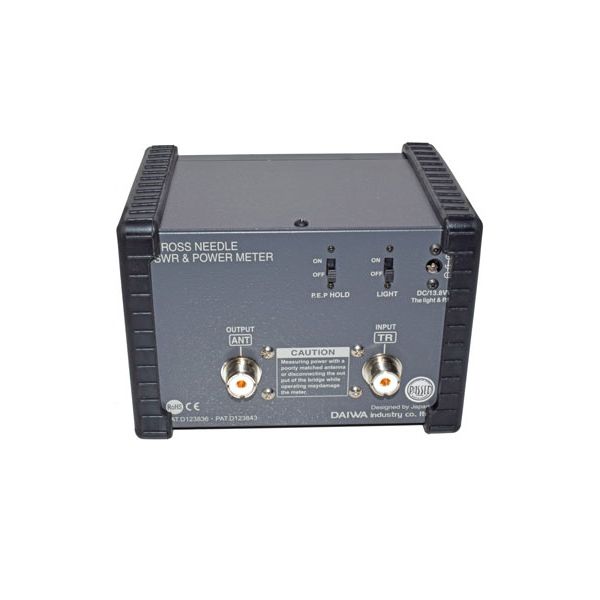

    Daiwa CN-901HP SWR/Wattmeter, 1.8-200 MHz, 2,000 W Max., Cross Needle, UHF Female, SO-239, 13.8 Vdc

    Free shipping
    Daiwa CN-901HP SWR/Wattmeter, 1.8-200 MHz, 2,000 W Max., Cross Needle, UHF Female, SO-239, 13.8 Vdc
    MSRP: $199.95
    Was: $199.95
    Now: $182.95
    (You save $17.00 )
    (No reviews yet) Write a Review
    SKU:
    DWA-CN-901HP
    UPC:
    4510934913063
    Width:
    8.00 (in)
    Height:
    8.00 (in)
    Depth:
    7.00 (in)
    Shipping:
    Free Shipping

    Out of stock

    Daiwa's large, lighted and easy-to-read cross needle meters will provide your ham shack with consistent readings. CN-901 Series meters feature qualities that will make measuring SWR and power during an antenna test, as well as matching and tuning transmitters, an easy task.

    Their dual-needle meters have one scale that measures forward power while the other reads reflected power. The existing SWR is indicated at the crossing point of the two needles so you can read all three of these important measurements at the same time!

    This HP model can also measure P.E.P. That's peak power in SSB operation.

    Specifications:

    Meter Frequency Range:1.8-200 MHz
    Minimum Power Range:20 W
    Middle Power Range:200 W
    Maximum Power Range:2,000 W
    Meter Style:Cross needle
    Meter Illumination:Yes
    Peak Power Readout:Yes
    Peak Hold:Yes
    Built-In Frequency Counter:No
    Meter RF Connector Type:UHF female, SO-239
    DC Power Required:Yes
    External Power Input Voltage:13.8 Vdc
    Remote Sensor Included:No
    SWR/Wattmeter Width:6.300 in.
    SWR/Wattmeter Height:4.300 in.
    SWR/Wattmeter Depth:4.800 in.
    SWR/Wattmeter Weight:2.20 lb

    NatCommGroup products (Comet, Daiwa, Maldol, Create, Lido, and NCG brands) are under factory warranty for one year from date of purchase. Any item found to be defective by NatCommGroup will be repaired or replaced at our discretion. Antennas that have been broken due to use and normal wear and tear, including impacts with garage doors, tree limbs, road debris, vandalism, etcetera, are not considered defective.
