    HUSTLER WORLD FAMOUS 6-BTV VERTICAL HF BASE ANTENNA 10-80m, 24ft

    Free shipping
    Hustler 6-BTV - Antenna, Vertical, HF, 6-Band, 80, 40, 30, 20, 15, 10 meters, 1.5 kW, 24 ft.
    $295.00
    (No reviews yet) Write a Review
    SKU:
    HRS-6-BTV
    UPC:
    701630974272
    Width:
    5.00 (in)
    Height:
    79.00 (in)
    Depth:
    5.00 (in)
    Shipping:
    Free Shipping

    Out of stock

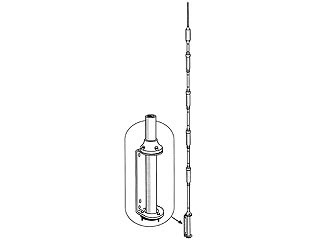

    Hustler 6-BTV 6 Band (10,15,20,30,40, 75 or 80 Meter) HF Vertical Trap Antenna.

    Hustler 6BTV 6-band HF Vertical Antenna is a 6-band trap vertical antennas that provide an omni-directional pattern. The 6BTVs are designed for operation in the 10, 15, 20, 30, 40, and 75 or 80 meter bands. These antennas perform well in restricted space areas. For optimal performance, radial wires should be used.

    The Hustler 6-BTVs provide for the electrical selection of bands through the use of optimum Q traps, which are individually and precisely tuned and internally sealed at the factory. The traps are parallel-tuned circuits which provide efficient isolation between the vertical sections, permitting multi-band operation. Broadband operation over the entire 40, 20, 15 and 10 meter hams band at low SWR is possible in a proper installation.

    The Hustler 6BTVs were designed to provide optimum performance from both an electrical and mechanical standpoint. Mechanically, these antennas boast a heavy duty base and heavy duty aluminum tubing. The mechanical assembly is accomplished with all stainless steel hardware. The performance provided by the Hustler 6BTVs is better than any other antenna of this type. Broadbanding is such that one measurement and setting permits both phone and CW operation. The antennas provide a nominal 52 ohm base impedance when installed and tuned according to the instructions. The radiation efficiency is equivalent to, or greater than, other trap verticals.



    Specifications for Model 6-BTV

    Bands: 10,15,20,30,40,75 or 80 Meters
    Connector: Lug
    Wind Load: 29 lbs @ 70 mph
    Power Capability: Full Legal Limit SSB/CW
    Electrical: - VSWR: Resonance 1.2 to 1 or better - Bandwidth: up to 100 kHz. on 75/80 meters - Power: full legal limit SSB or CW 1000 watts
    Mechanical: - Length: 24' long - Weight: 16.5 lb.
    Mounting: Ground mount with or without radials or elevated mount with radials. Vertical Support up to 1.75" O.D.

    New-Tronics Antenna Corporation warrants it's products, including Hustler Antennas, to be free of defects in the material and workmanship and extends this warranty under intended use and normal service conditions to the original owner for a period of one year from the date of purchase
