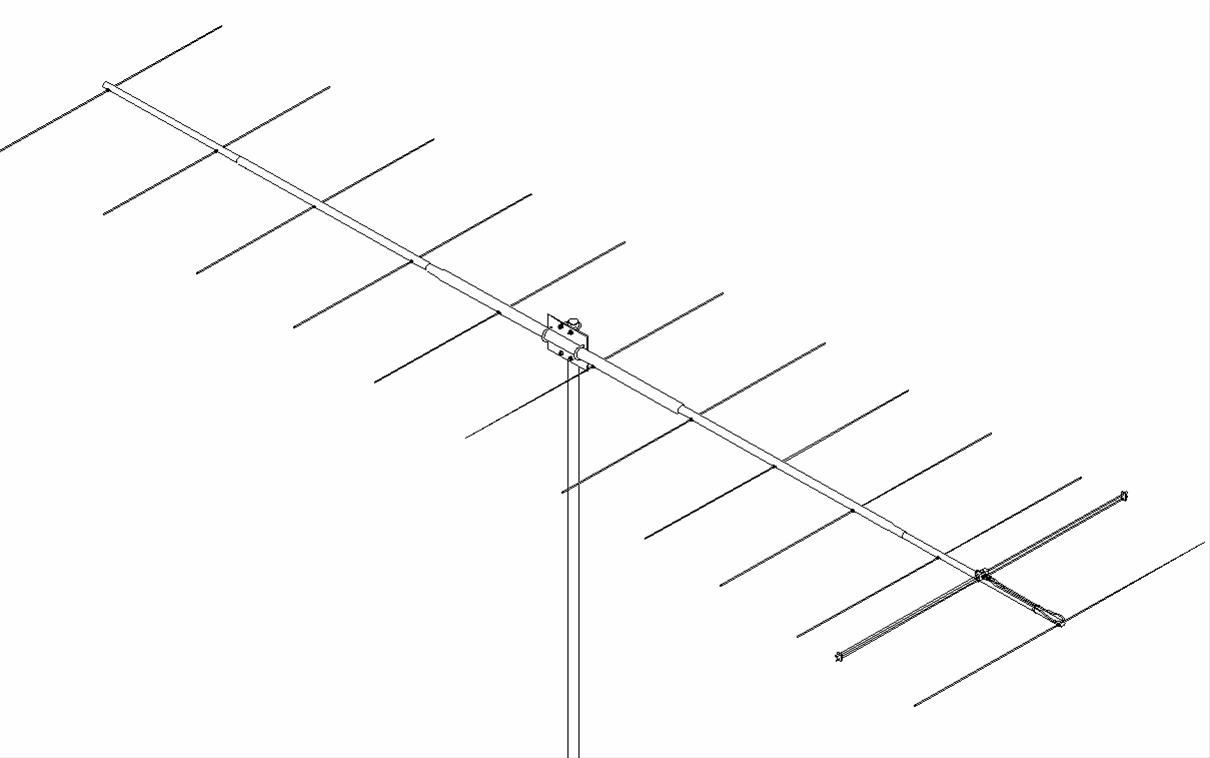

This Antenna features the latest computer techniques for optimization of pattern and gain. Clean patterns will allow you to hear more and interfere less. Clean patterns are essential for stacking. You can stack this antenna either polarization.
Structurally this antenna is sturdy and clean that requires no boom supports. Elements are 3/16 Inch 6060-T6 Aluminum rod mounted through the boom on UV stabilized "button" insulators. The Boom is a full 1-1/2 Inch diameter in the middle tampering through two 1-1/4 inch sections to stiff 1 inch tips.
The heart of this antenna is the unique Driven element module: connector are O-ring sealed to the CNC machined block and balun connectors feature triple O-ring seals. Internal module connections are sealed in a space-age silicone gel (with nearly 4 times the dielectric strength of air) to enhance power handling.
Specifications:
Frequency Range: 144 to 148 MHz (2 meters)
* Gain: 14.9 dBi
Front to Back: 22 dB Typical
Beam width: E = 32 degrees, H = 36 degrees
Feed Type: T Match
Feed impedance: 50 ohms, unbalanced
Maximum VSWR: 1:5:1
Input Connector: N Type, Female
Power Handling: 2.5 kW
Boom length / Dia: 19.5 ft / 1-1/2 to 1 Inch
Maximum Element Length: 40-1/4 Inches
Turning Radius: 10 ft
Stacking Distance: 11 ft High & 11 ft Wide
Mast Size: 1-1/2 to 2 Inch
Wind Area / Survival: 1.5 sq. ft / 100 MPH
Antenna Weight 8 lbs.
* Subtract 2.14 from dBi for dBd
