    MFJ-2010 Off Center Fed Dipole , 40/20/10/6M, DIPOLE, 300W

    Shipping:
    undefined (Fixed Shipping Cost)

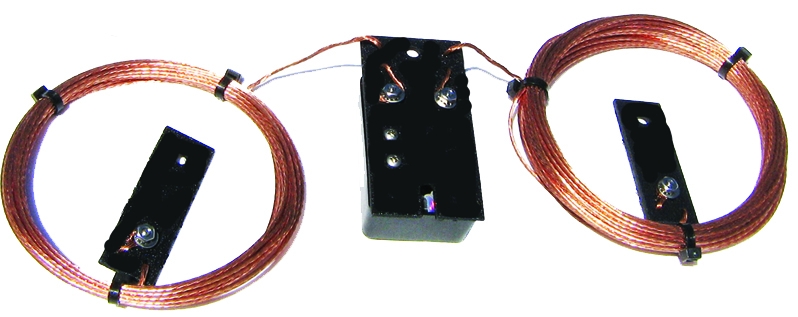

    MFJ-2010 Dipole Antenna, Ultra-Lite, Off-Center Fed, Multi-Band, Non-Resonant, 300 W, 14 AWG, 67.0 ft. Length, Kit
    $84.95
    (No reviews yet) Write a Review
    SKU:
    MFJ-2010
    UPC:
    650619004731
    Width:
    10.00 (in)
    Height:
    12.00 (in)
    Depth:
    3.00 (in)
    Shipping:
    Calculated at Checkout

    Out of stock

    This covers for 40, 20, 10 and 6 Meters, handles 300 Watts PEP SSB/CW. This is perfect for low-profile, portable and QRP operation.

    The OCFD (off-center fed Dipole) design delivers wider bandwidth, lower SWR, solid gain, and full-frequency agility without a tuner.

    This weighs less than two pounds and pulls high in the air with lightweight cord for easy install.

    Virtually invisible 66-foot jacketed wire element. Delivers up to 6-dBi gain on 40 Meters, 9-dBi on 20 Meters, and a whopping 11.5-dBi gain on 10 and 6 Meters! Day or night, there’s always DX on one of these bands. If you hear it, you’ll work it -- even on QRP.

    They offer:

    Highest Efficiency: Full-sized radiator with MatchmakerTM feed block that tests over 98-percent efficient. All your power gets radiated!

    Best Match: NEC-modeled element delivers the same feed-point impedance on every band. Innovative new transformer designs yield exact ratio needed for a great match.

    Super Balun: OCFDs need good baluns to block feedline radiation. Built-in bifilar-wound Guanella current-choke has over 30 dB of common-mode rejection on all bands. Kills pattern irregularities, RFI, noise.

    Real Gain: Delivers a 6-dBi ground-rein-forced dipole pattern on the fundamental and a 9-dBi full-wave cloverleaf on the second harmonic. You get an amazing (up to) 11.5 dBi peak gain on higher bands.

    Height Compensation: Element feedpoints are compensated for typical mounting height, so you always get lowest possible SWR on all bands!

    Frequency Compensation: Normally, a OCFD cut for 3.85 MHz resonates on 7.7 MHz. Our unique OCFD design resonates mid-band on both 75/40!

    Built to Last: UV-resistant marine-ABS feedblocks, stainless hardware, and Teflon® SO-238 connector ensure maximum protection from the environment.

    Easy-to-Install: Installs in flat-top or inverted-Vset-up, feedblock has attachment points for tower or tree support. Suggested height is 35-70 feet.

    Low Cost: Outperforms multi-band vertical antennas by a wide margin for an unbelievable fraction of the cost!

    LIMITED 12 MONTH WARRANTY* MFJ Enterprises, Inc. warrants to the original owner of this product, if manufactured by MFJ Enterprises, Inc. and purchased from an authorized dealer or directly from MFJ Enterprises, Inc. to be free from defects in material and workmanship for a period of 12 months from date of purchase provided the following terms of this warranty are satisfied.
